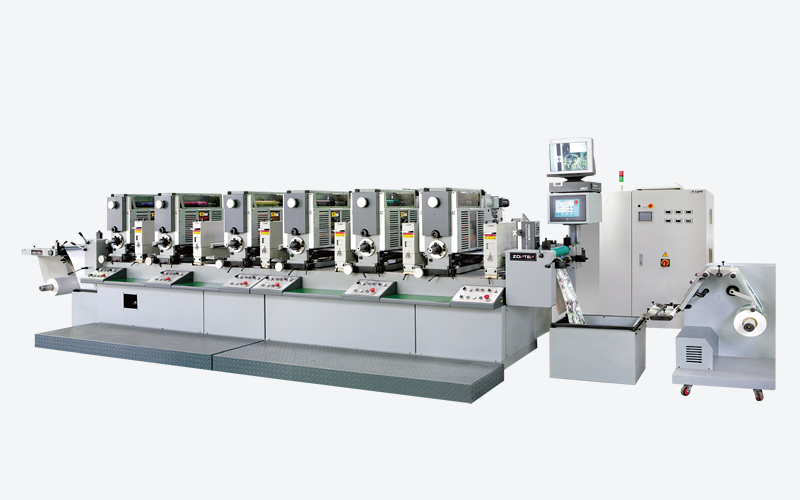

Smart-320L
Полуротационная машина высокой печати

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ:
Модель
Макс.Ширина материала310mm
Макс.Ширина печати290mm
Рапорт печати50-260mm
Секции2-8 секции
Толщина материала0.1-0.3mm
Скорость30-250r/min
Макс.Диаметр размотки700mm
Макс.Диаметр намотки700mm
Мощность17.3KW Not Including UV
Электропитание380V/AC.Three-phase 50/60H 50A17.3KVA
Габариты (LxWxH)6800x1600x1400mm
Вес машины6800kg/6 color

1.Adopt paper reciprocating mode. One printing roller could do the job regardless the repeat size.
2.Adopt servo control system to control every roll in printing system, which make the optimized perfor-mance of machine .
3.Optimization of ink rollers could prevent bar marking and ghosting to improve the printing quality.
4.The supply of ink will change pro-portionally with the speed of the machine to make printing result better.
5.Malfunction of the machine would be shown on the screen automatically,which will shorten the repair time.
6.Paper unwinding, printing, UV vanish, rotary diecutting, waste removal and rewinding can be completed in one pass.
7.This equipment is suitable for printing middle & upper class labels in large .middle and small batch of production.
